Quick Details

  • Condition: New
  • Usage: Soybean Oil
  • Type: Cold & Hot Pressing Machine, Edible Oil Production Line
  • Automatic Grade: Automatic
  • Production Capacity: 100%
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: HUATAI
  • Model Number: HT
  • Voltage: 380V
  • Power(W): 30kwh
  • Dimension(L*W*H): 18M*12M*18m
  • Weight: 1 tons
  • Certification: ISO9001
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Processing Capacity: 10TPD TO 1000TPD
  • Suitable Oil Seed: Soybean, peanut,cottonseed
  • Extracting Medium: Solvent ( heaxe )
  • Refining method: Chemical and Physical Refining
  • Who we are: Manufacture
  • Heating medium: steam

Packaging & Delivery

Packaging Details: 1. packed in 20 foot container
2. packed in 40 foot container
3. As customer per requirement
Delivery Detail: within 7 working days



Mustard Seed /Castor Seeds Oil Extraction machine /Production line

1 Mustard Seed /Castor Seeds Oil Extraction machine /Production line



  • Processing Capacity :        10TPD To 1000TPD Soybean
  • Suitable Raw Materials:   Soybean Seed
2 Main Equipment of Mustard Seed /Castor Seeds Oil Extraction machine /Production line
  • Bucket Elevator
  • Cleaning Sieving
  • Destoner
  • magnetic separator
  • dehuller ( for some oil seeds)
  • crusher/Flaker
  • cooker
  • Presser ( Expeller)
3  Description of Mustard Seed /Castor Seeds Oil Extraction machine /Production line

Henan Huatai Cereals And Oils Co.,Ltd is the leading Manufacture in Soybean Oil seeds Extraction and Crude Soybean Refinery in China.
Huatai company has built Many  soybean oil seeds plants in all over the world during  30 years period.

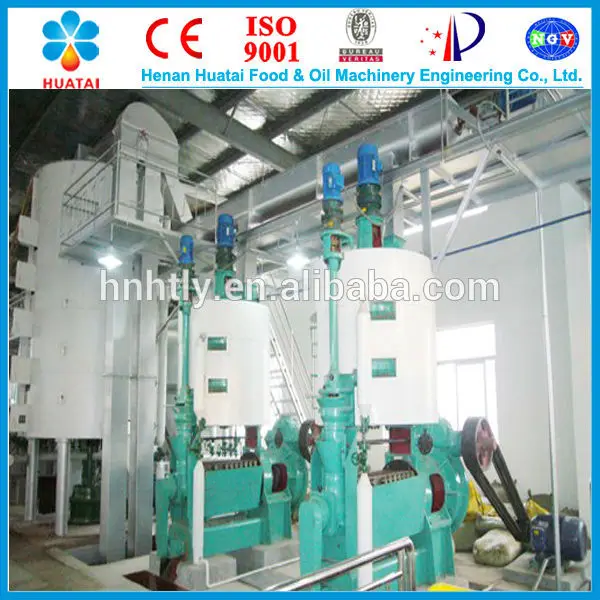

Mainly Equipment introduction of  Soybean OIl Pressing Machine

Bucket elevator is mainly used in elevating raw materials(fines,seeds)vertically.It is the self-cleaning type and easy to operating.

Head rolldiameter*width600*350mm
Covered with rubber materialA3 anti-friction,imported rubber
Cover thickness of the rubber12-15mm
Hardness

>=70Duro

Tail pulleydiameter*widthD600*350mm
Structural styleSquirrel cage
Tensioning gearShapeScrew tensioning
Stroke of tension300mm
HoldbackNYD85-D80
Tacho-generatorPNP/NO/DC24V/NI5-M12-OP6L
Off track sensorCDS 80C(optional )
Explosion venting membraneStainless steel(optional)

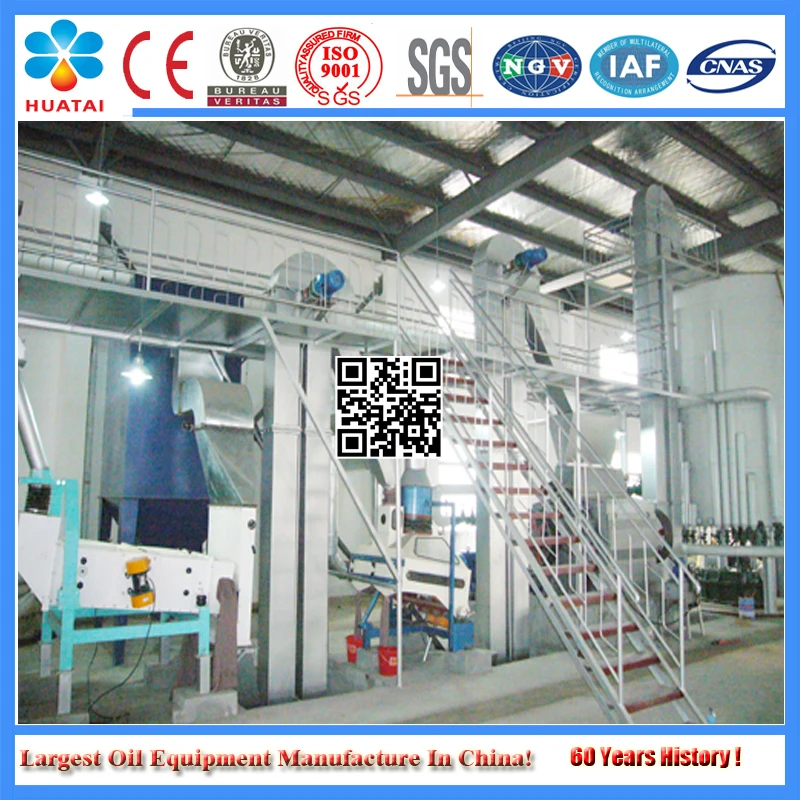

soybean Oil seeds Cleaning sieving is specifically designed for the preliminary cleaning of all types of seeds at high
flow rates in preparatory section. It effectively removes all size impurities from the seeds. The seed cleaner is fitted with an Aspiration channel for the removal of finer particles like husk, chaff etc.

 Soybean Destoner is used for the cleaning of grain and other granular products such as stones, mudballs, glass  pieces, metal pieces etc… from the seeds. The machine is provided with 2 screens in the sieve box for  effective separation of stones. Degree of separation can be optimized by individually adjusting screen  inclination and air quantity.

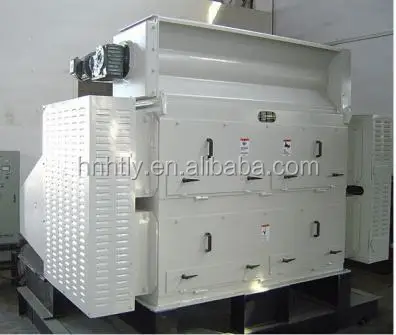

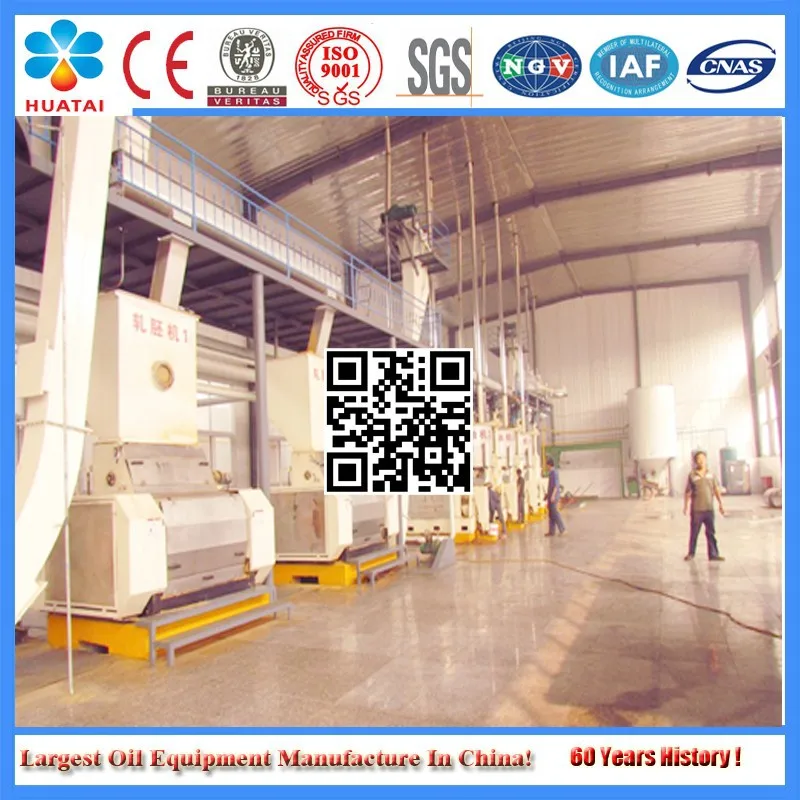

Cracker Roller Mill with 4 rolls is used mainly in solvent extraction plants for the crushing of oil seeds.  The rolls are pressed together mechanically by disc springs. The feed gate is adjustable to regulate  the feed stock. Large doors arranged on both sides of the machine allow visual inspection and sampling

Model Item

YPSG25×80

YPSG25×100

YPSG25×125

YPSG40×100

capacity(t/d)

68-80

100-150

160-200

280-350

particle size after cracking(section)

1/4-1/8

1/4-1/8

1/4-1/8

1/4-1/8

Fines content

4%

4%

4%

4%

Speed ratio

1:1.51

1:1.51

1:1.51

1:1.51

Pin roll specification(diameter×length)(mm)

Φ250×800

Φ250×1000

Φ250×1250

Φ400×1000

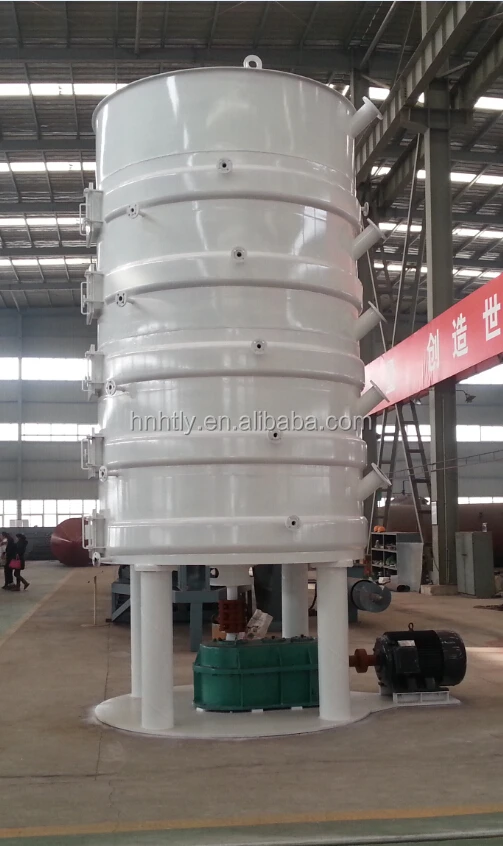

Cooker is designed for the cooking and/or conditioning of oilseeds during the preparation process before the mechanical pressing or flaking. Vertical Cookers are multi staged and big size stages are used. Besides sterilizing and decontaminate the seeds, the cooking process is to provide the cooked seeds with plasticity to reduce the oil’s viscosity and clot the proteins

Model

Capacity(t/d)

Power(kw)

Heating area (m2)

softening

cooking

YZCL150×5

40-60

20-30

22

14.5

YZCL180×5

80-100

40-50

30

20

YZCL210×5

100-150

60-70

30

26.2

YZCL250×5

160-200

80-90

37

42

YZCL250×6

180-250

90-100

45

50.4

YZCL280×5

220-260

110-130

55

52

YZCL280×6

260-300

130-150

55

62

YZCL300×5

250-300

120-140

55

56.8

YZCL300×6

300-350

150-200

75

67

YZCL400×5

550-600

280-300

110

89.4

YZCL400×6

700-800

300-350

132

107

YZCL400×7

800-900

350-400

132

120





4 Solvent Extraction Plant for Soybean Cake

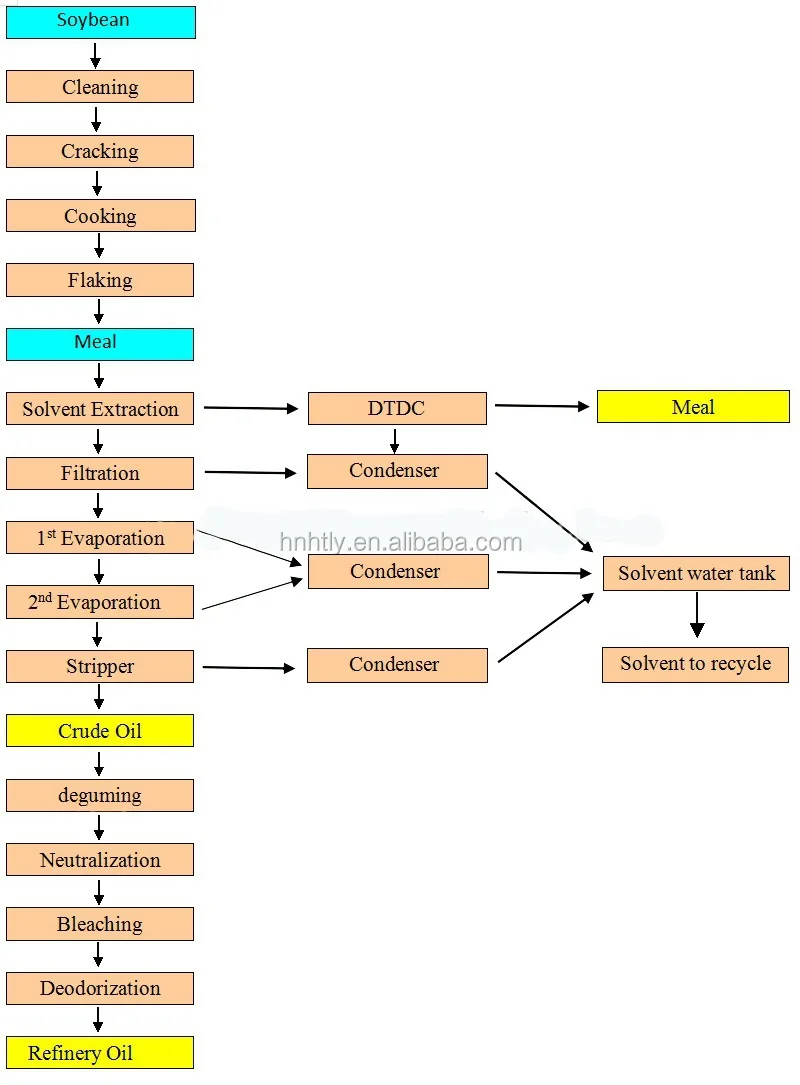

The Solvent Extraction processing Includes four sections: solvent extraction section; meal desolventizer; miscella oil distillation section ;solvent recovery section; Paraffin oil recovery system( recycle residual solvent)





Solvent Extractor The Extractor is the main equipment in a Solvent Extraction Plant. It is designed in perfect measurements so as to obtain high quality oil and minimum residual oil. The material is transported through the solvent spraying chamber and the speed of transportation can be varied easily. The machine is designed to give sufficient time for penetration and percolation of solvent into the raw material and to view the distribution, view glasses are provided.





Desolventiser-Toaster

The material obtained from the extractor has tendency to retain the solvent, and this solvent has to be recovered. The basic principle involved in Desolventiser Toaster is direct and indirect heating to remove all the residual solvent from the material



Condensers

Solvent Vapours are formed both in Desolventiser and distillation section and these are to be condensed. Adequate surface has been provided in the Condenser for complete condensation of solvent vapor.



Stripping Column

Stripping column is one of the main equipment in the Oiltek Distillation unit. The column is designed to strip the oil with live steam to remove any traces of solvent in the extracted oil.







5 Company Indroduction


Henan Huatai Cereals And Oils Machinery Co., Ltd. (short for HHFOME) is a manufacturing enterprise specialized in producing oil and cereal processing equipments in China. HHFOME consists of Henan Huaxian Grain Machine Factory, Huaxian Hangpeng Grain Machinery Co., Ltd. and Beijing Huakang Xiwang Biological Technology Co., Ltd.. Established in 1988, HHFOME covers an area of 63,000 square meters and has 210 senior engineering technicians. Our company has 202 sets of automatic processing equipment. Processing capacity of our enterprise is more than 3000 sets every year. HHFOME has obtained independent export rights and has passed the evaluation of ISO9001:2000 Quality System Management Certification. We have got 22 national patents, 4 international awards, 2 national awards and 2 provincial awards.
Main Projects Scope:
-----30-5000T/D oilseeds pretreatment project
-----30-5000T/D oilseeds extraction project
-----10-500T/D crude oil refining project
-----10-500T/D crude oil fractionation project
-----Oil interesterification project
-----Oilseeds protein, phospholipid project
-----Natural pigment extraction project
-----Grain deep processing project
Typical Project:
----30-1000T/D rice bran pretreatment, expanding, extraction project
----30-600T/D rice bran oil refining project
----150-1000T/D cottonseed dephenolizing protein
----10-120T/H palm fruit oil pressing project
----10-500T/D Non acid method biodiesel production project
----10-2000T/D corn deep processing project
Newest Technology:
---Energy saving oil vacuum deodorization technology
---Concentrated protein extraction technology
---Mixed oil extraction technology
---Mixed oil refining technology
---Molecular distillation technology
---Broken rice desaccharification technology







If you want to know more information about soybean oil plant, please send E-mail to us
E-mail: sales09(at)oilmachineworld.com
Skype: huatai-sales09
Mobile: 0086-18203651296 ( viber & whatsapp)
